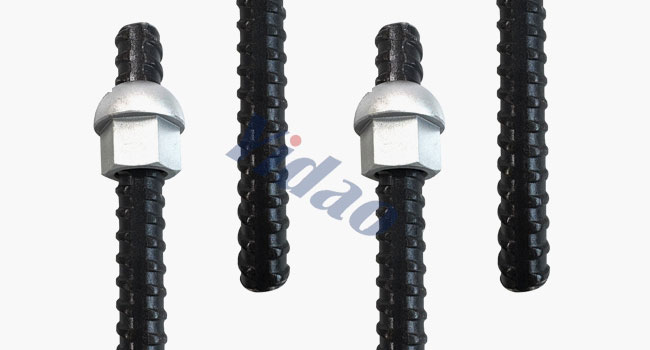

Dia32mm-500 Left-hand Thread bar
DESCRIPTION:
Thread Bar
1.Grade: PSB500
2.Weight: 6.37kg/m

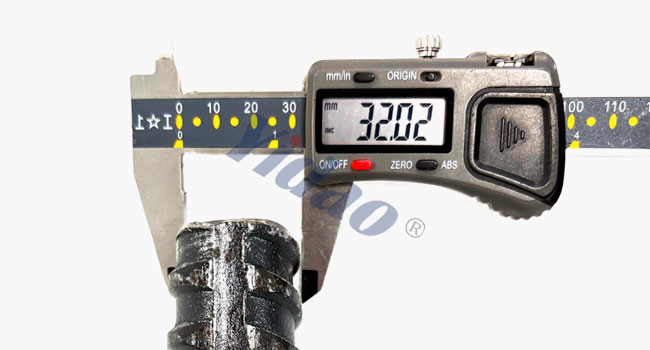

3.Dia:32mm, Left-hand
4. Length: 9m, 12m or as per customers' requirements
5. Technology: Hot rolled, Left- hand
6. Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar
7. Packing: in bundles
8. Delivery: 15-30 days
COMPOSITION:
The PSB500 thread bar is made of black steel with a continuous left-handed along the entire length of the bar.The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.
Typical Applications:
1. Rock Bolts
2. Soil Nail
3. Concrete anchoring system
4. Geotechnical Systems
5.Mining & Tunneling
6. Anchor Bolts
7. Mining & Tunneling
Thread Bar Coating for Corrosion Protection:
Black or plain:Standard coating
Coating: galvanized(on request)
Coating: epoxy coating(on request)
