Threadbar Applications in Geotechnical Engineering – A Technical Overview
Yidao continuous high-strength threaded bars serve as a core component across geotechnical systems. While the same bar is used, its application—as soil nail, rock bolt, ground anchor, or micropile—involves distinct load transfer mechanisms. Across all configurations, Yidao threadbars enable on-site cutting and coupling, simple connection with nuts and couplers, and reliable force transmission through grout or mechanical anchorage.

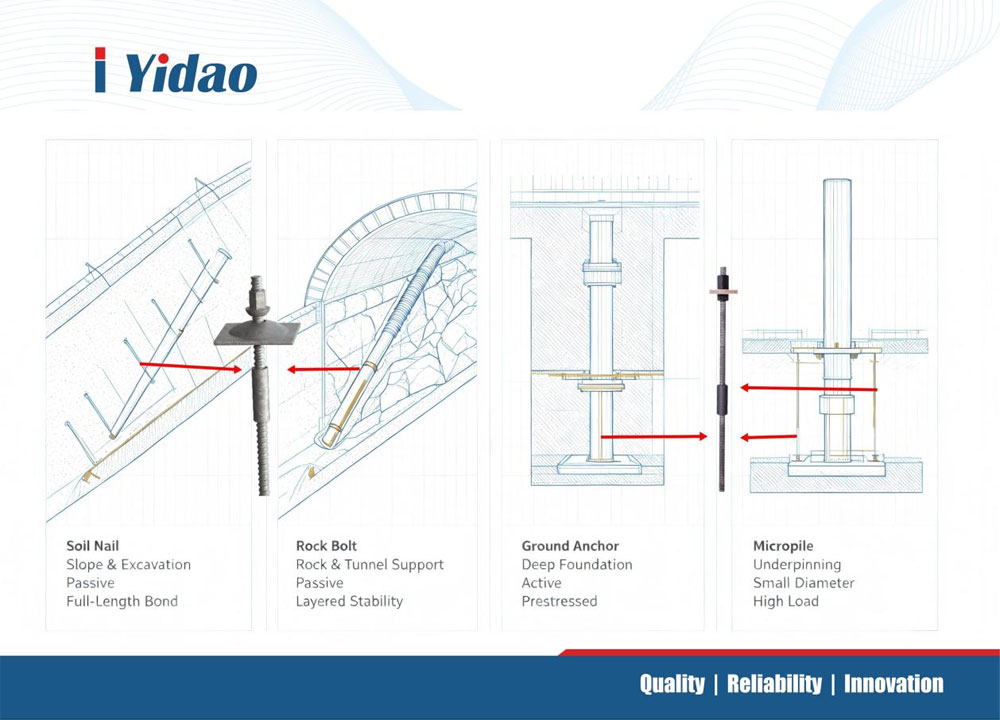

Functional Distinctions
**Soil Nails** are installed in grouted boreholes and function as passive reinforcements. They rely on minor ground movement to activate tensile resistance and are commonly adopted for slope stabilization and temporary retaining structures.
**Rock Bolts** serve a similar purpose but are deployed in rock masses. They bind loose or fractured rock layers to stable substrata and are essential for tunnel support, rockfall mitigation, and steep face stabilization.
**Ground Anchors** are active, prestressed systems comprising a bonded anchor length and an un-bonded free length. Following installation, anchors are tensioned to apply a clamping force, thereby controlling displacement. This makes them the preferred solution when structural movements must be strictly limited.
**Micropiles** are small-diameter (≤300 mm) drilled and grouted piles reinforced with a central threadbar. Capable of resisting compression, tension, and alternating loads, they are well suited for foundation strengthening, underpinning, and projects with restricted access or limited headroom.
Yidao manufactures complete threadbar systems—bars, couplers, nuts and bearing plates—compliant with international standards for global infrastructure projects.
Steel grades 500/630 Mpa, 670/800Mpa, 830/1030MPA, 930/1080 Mpa; G60, G75, G70,G100,G150 etc
Diameter:15mm,18mm,20mm,25mm,28mm,32mm,36mm,40mm,50mm,63.5mm,75mm etc.
Surface: can be hot dip galvanized, epoxy coated, DCP etc.
Complete accessories: couplers, nuts, and anchor plates, DCP accessories:grout tubes, spacer,corrugated sheathing,end cap etc.
Contact us for technical data or engineering support.
