Yidao－Focus on THREAD BAR

Customized products on demand

High Strength Thread Bar

15/17mm Formwork Tie Rod

请稍候...

Brand:Yidao
Standard:GB/T 20065-2016
Weight:1.4 kg/meter
Yield/Tensile [KN]:147/182 KN
Type:Hot Rolled
Material:Carbon Steel; Alloy Steel
Thread:Left Hand; Right Hand
Quality control: 100% quality inspected
Surface:Self Color; Zinc Plated; HDG; Epoxy Coating.
Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

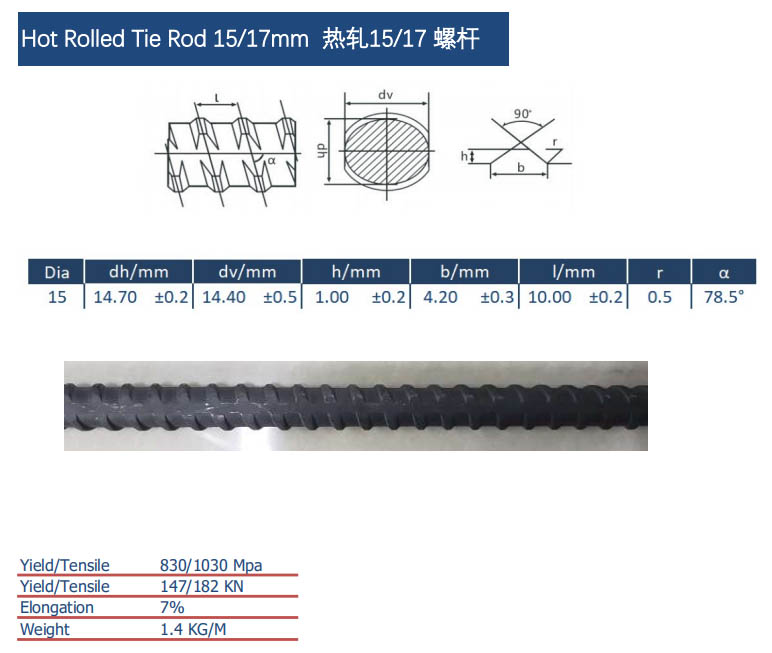

Product description

Grade:830/ 1030Mpa

Diameter:15mm

Weight:1. 4kg/m

Yield:147KN

Ultimate:182KN

Elongation:7%

Agt:3.5%

Related Products: HIGH STRENGTH THREAD BAR

Standard: AiSi, ASTM, bs, DIN, GB, JIS

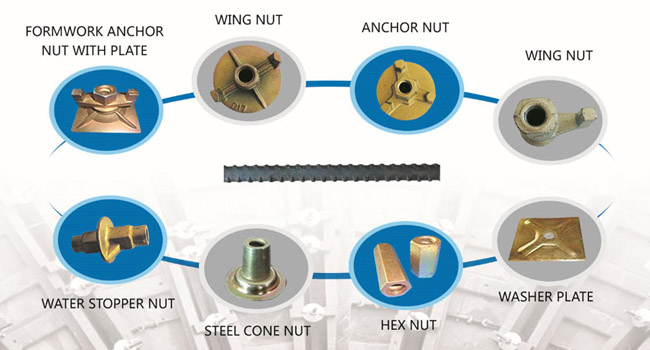

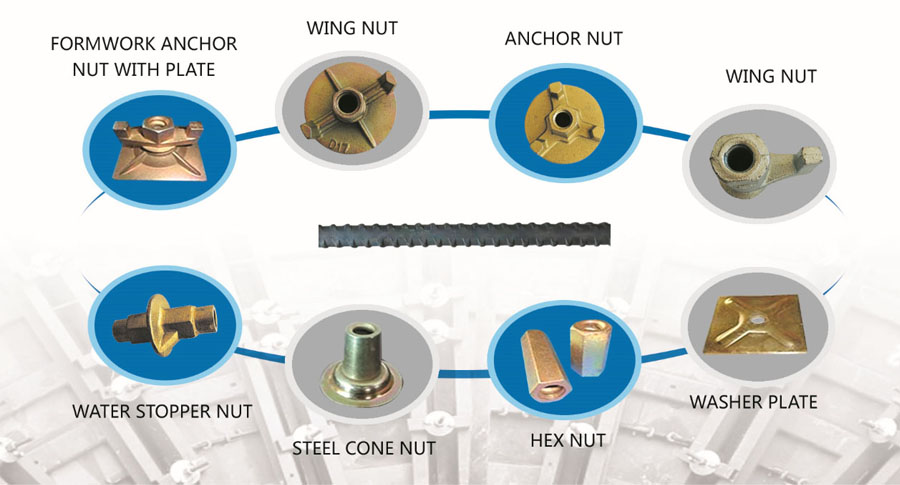

Formwork Accessories

Standard: AiSi, ASTM, bs, DIN, GB, JIS
Spherical Hex Nut

Standard: AiSi, ASTM, bs, DIN, GB, JIS
Dia 20mm-930 Thread Bar
