Dia 25mm-930 Thread Bar

请稍候...
  • Brand:Yidao
  • Standard:GB/T 20065-2016
  • Weight:4.1 kg/meter
  • Yield/Tensile [KN]:457/530 KN
  • Type:Hot Rolled
  • Material:Carbon Steel; Alloy Steel
  • Thread:Left Hand; Right Hand
  • Quality control: 100% quality inspected
  • Surface:Self Color; Zinc Plated; HDG; Epoxy Coating.
  • Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

Product description

Thread Bar / Post-Tensioning Bar

Grade: PSB930

Dia:25mm

Length: 9m, 12m or as per customers' requirements

Technology: Hot rolled, right hand

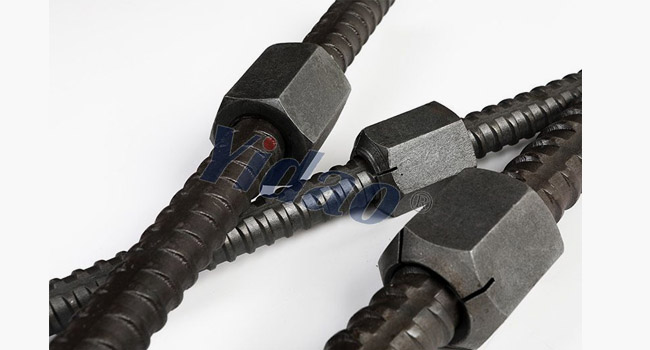

Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar

Packing: in bundles

Delivery: 15-30 days


COMPOSITION:

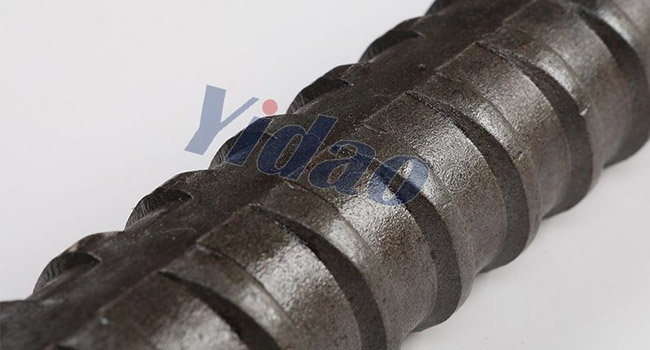

The PSB930 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.


Typical Applications:

1. Rock bolts

2. Marine tie rod

3. Heavy lifting

4. Geotechnical construction

5. Permanent anchor

6.Mining & Tunneling

7.Foundation Construction

8.Bridge


Thread Bar Coating for Corrosion Protection:

Black or plain:Standard coating

Coating: galvanized(on request)

Coating: epoxy coating(on request)
