Epoxy Thread Bar for Reliable Corrosion Protection

Epoxy Thread Bar for Reliable Corrosion Protection

Epoxy Thread Bar is a high-strength threaded steel bar designed for anchoring and structural applications where enhanced corrosion protection is required. By applying a durable epoxy coating to the surface of the thread bar, the steel substrate is isolated from moisture, oxygen, chlorides and other corrosive elements, helping to extend the service life of the anchoring system.

Epoxy-coated thread bars are widely used in ground anchors, soil nails, rock anchors, tie-down anchors, retaining walls and post-tensioning applications, particularly where the steel may be exposed to aggressive soil or environmental conditions.

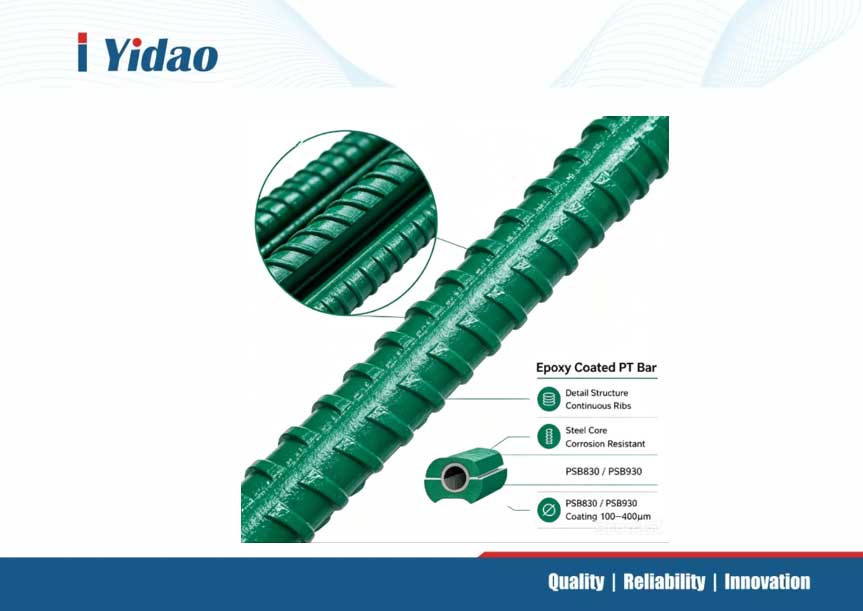

High-Strength Thread Bar with Epoxy Coating

The thread bar maintains the mechanical performance and continuous-thread design required for efficient installation and reliable load transfer, while the epoxy coating provides an additional barrier against corrosion.

The continuous coarse thread profile allows nuts, couplers and other threaded accessories to be used along the bar length, providing flexibility for different anchoring configurations and project requirements.

Excellent Corrosion Protection

Corrosion protection is an important consideration for permanent ground anchors and other long-term anchoring systems. Epoxy coating creates a physical barrier between the steel and the surrounding environment, reducing direct contact with moisture and corrosive substances.

Depending on the project design and environmental conditions, epoxy-coated thread bars can be incorporated into different corrosion-protection systems, including grouted anchors and multiple corrosion protection (MCP/DCP) systems.

Applications of Epoxy Thread Bar

Epoxy Thread Bar can be used in a wide range of geotechnical and structural applications, including:

 ◎ Ground Anchors

 ◎ Soil Nails

 ◎ Rock Anchors

 ◎ Tie-Down Anchors

 ◎ Slope Stabilization

 ◎ Retaining Wall Systems

 ◎ Foundation Anchoring

 ◎ Post-Tensioning Systems

 ◎ Temporary and Permanent Anchoring Systems

For aggressive ground conditions or permanent structures, the appropriate corrosion-protection system should be selected according to the project design, ground environment and required service life.

Customized Epoxy Thread Bar Solutions

Epoxy Thread Bar can be manufactured in different diameters, lengths, steel grades and coating specifications according to project requirements. Matching threaded nuts, couplers, bearing plates and other accessories can also be supplied as part of a complete anchoring system.

During handling, transportation and installation, care should be taken to avoid damaging the epoxy coating. Where required, damaged coating areas can be repaired using suitable epoxy repair materials.

A Reliable Choice for Long-Term Anchoring

With the combination of high-strength steel, continuous threading and epoxy corrosion protection, Epoxy Thread Bar provides a practical solution for demanding anchoring applications. It is particularly suitable for projects where durability, corrosion resistance and reliable load transfer are important considerations.
