Yidao-Focus on THREAD BAR

Customized products on demand

1080/1230Mpa

请稍候...
  • Brand:Yidao
  • Standard:GB/T 20065-2016
  • Weight: kg/meter
  • Yield/Tensile [KN]:
  • Type:Hot Rolled
  • Material:Carbon Steel; Alloy Steel
  • Thread:Left Hand; Right Hand
  • Quality control: 100% quality inspected
  • Surface:Self Color; Zinc Plated; HDG; Epoxy Coating.
  • Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

Product description

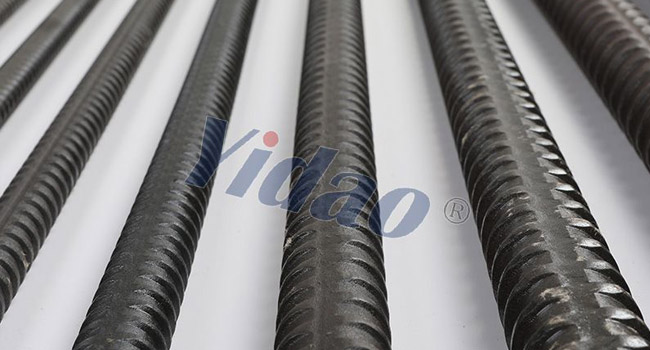

Thread Bar / Post-Tensioning Bar

1. Grade: PSB1080

2. Length: 9m, 12m or as per customers' requirements

3. Technology: Hot rolled, left hand

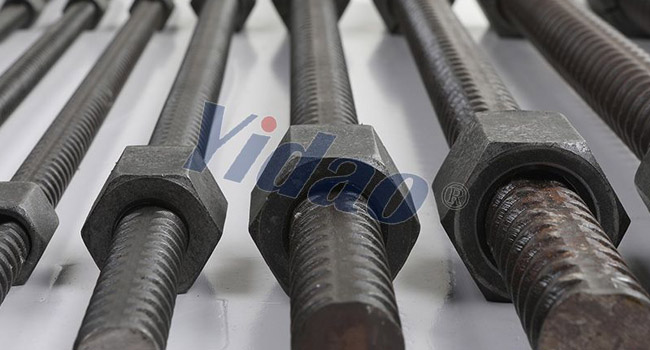

4. Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar

5. Packing: in bundles

6. Delivery: 15-30 days

COMPOSITION:

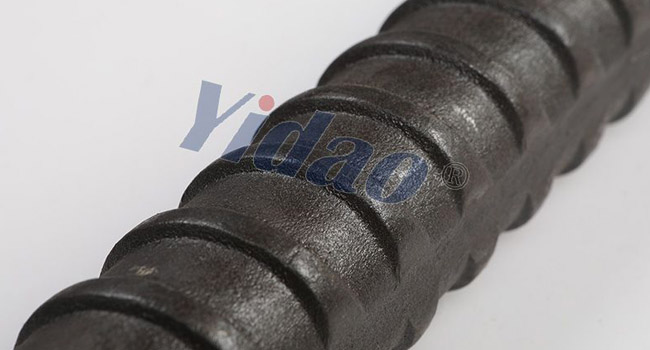

The PSB1080 thread bar is made of black steel with a continuous left-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.

Typical Applications:

1. High-speed Railway

2. Bridge

3. Concrete anchoring system

4. Formwork panels, industrial facilities

5. Post-tensioning systems

6. Geotechnical systems

7. Mining & Tunneling

Thread Bar Coating for Corrosion Protection:

Black or plain: Standard coating

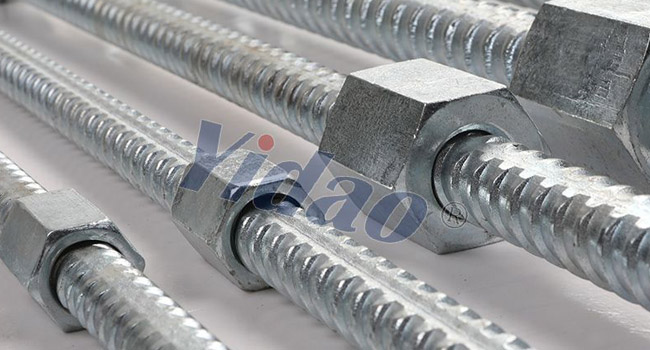

Coating: galvanized (on request)

Coating: epoxy coating (on request)

High strength thread bar
