Yidao-Focus on THREAD BAR

Customized products on demand

Dia 28mm-950/1050 Thread Bar

请稍候...
  • Brand:Yidao
  • Standard:GB/T 20065-2016
  • Weight:5.1 kg/meter
  • Yield/Tensile [KN]:585/647 KN
  • Type:Hot Rolled
  • Material:Carbon Steel; Alloy Steel
  • Thread:Left Hand; Right Hand
  • Quality control: 100% quality inspected
  • Surface:Self Color; Zinc Plated; HDG; Epoxy Coating.
  • Application: Post-Tensioning; Formworks; Geotechnical; Ground Anchors Soil Nailing; Tunneling

Product description

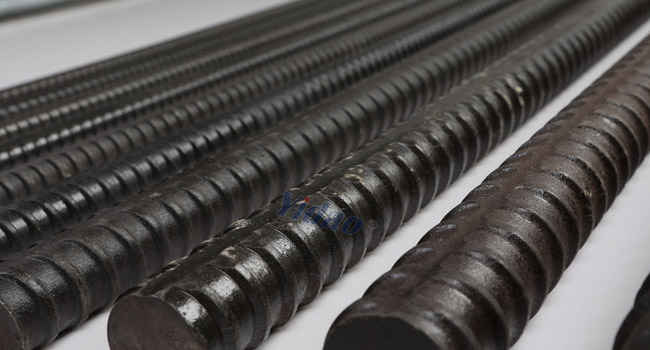

Thread Bar / Post-Tensioning Bar

1. Grade: PSB950/1050

2. Dia:28mm

Length:  12m or as per customers' requirements

Technology: Hot rolled, right hand

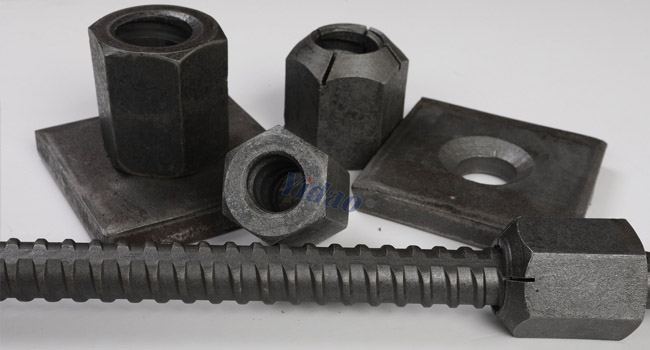

Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt, foundation bolt, couplers, spring bar

Packing: in bundles

Delivery: 15-30 days


COMPOSITION:

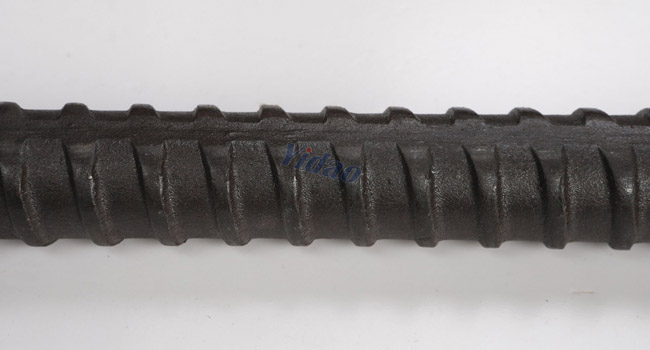

The PSB950 thread bar is made of black steel with a continuous right-handed along the entire length of the bar. The continuous threading allows the cut of the bar with different length according to the design requirements and it also improves the adhesion between the bar and grouting.


Typical Applications:

1.Tie Rod

2.Ground Anchor

3.Soil Nailing

4.Geotechnical


Thread Bar Coating for Corrosion Protection:

Black or plain:Standard coating

Coating: Zinc Plated(on request)

Coating: Galvanized(on request)

Coating: Epoxy coating(on request)

Coating: H.D.G+Epoxy coating(on request)
